CNC machine mist extraction is often discussed as a collector choice, but the real release usually happens at the machine enclosure. High-speed spindles, flood coolant, through-tool coolant, oil-based machining, grinding fluid, and hot chips can create mist that stays inside the machine until a door opens. If the extraction system does not manage that door cycle, a cloud of mist can enter the shop even when the collector is running.
OSHA's metalworking fluids guidance emphasizes controlling mist through machine design, enclosures, local exhaust ventilation, maintenance, and work practices. That is the right order for CNC mist projects. Start with the machine, coolant, enclosure, and operator routine; then size the extraction and filtration around the real release pattern.
The Enclosure Is the First Collector

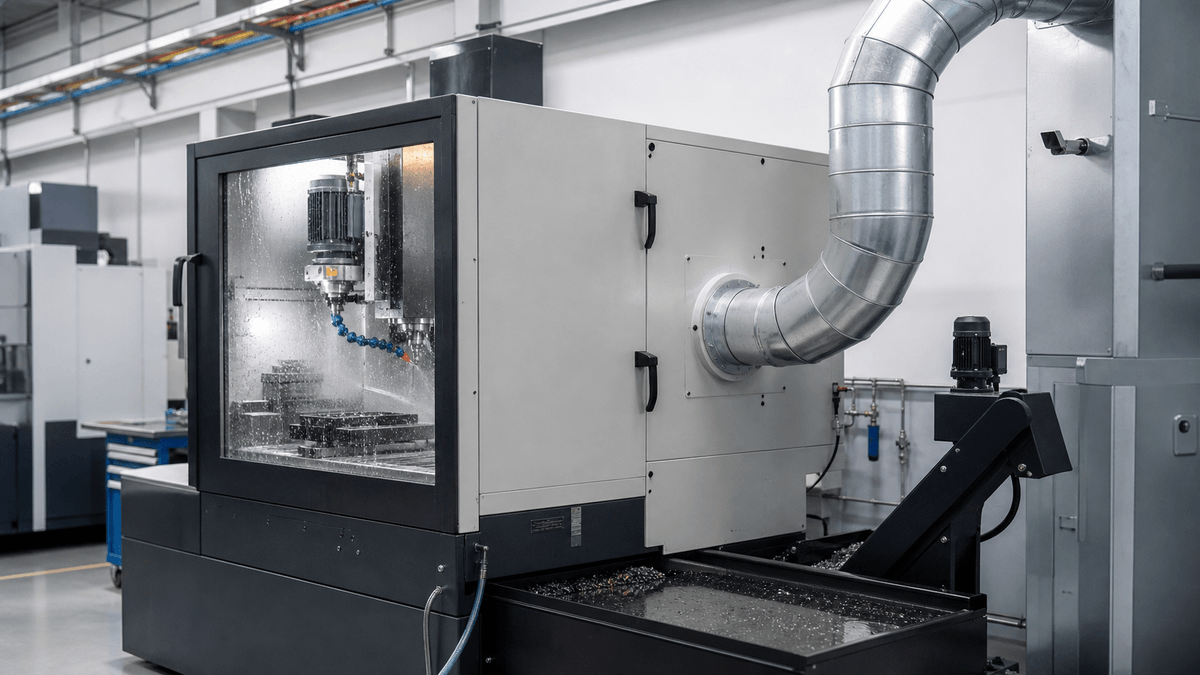

An enclosed CNC machine gives mist extraction a chance. The enclosure slows the release, creates a defined capture volume, and allows exhaust to pull inward through openings. A machine with missing panels, damaged seals, open cable penetrations, or a habit of early door opening gives mist an easy path into the room.
Before increasing fan size, inspect doors, gaskets, viewing windows, chip conveyor openings, tool-change openings, and coolant return areas. A small leak may not matter during light cutting but can become visible during high-pressure coolant or aggressive milling. Door dwell time also matters. Waiting a short period before unloading may let extraction clear the enclosure enough to reduce the mist puff at opening.
NAROO's automotive air filtration and dust removal context is useful for machining lines where CNC operations sit near welding, grinding, and finishing. In those plants, machine enclosure performance and plant-level air planning have to work together.
Coolant Behavior Changes the Mist Load
Mist generation depends on more than the machine model. Coolant concentration, tramp oil, temperature, nozzle pressure, tool speed, part geometry, sump condition, and biological condition can change droplet size and odor. A collector that performed well before a coolant change may load faster afterward.
OSHA's metalworking fluids materials note that minimizing mist generation begins with fluid delivery design, fluid maintenance, machine cleanliness, and splash control. In practice, this means the production team and maintenance team both own mist control. If coolant nozzles spray against a spinning tool or open surface, extraction must work harder. If the sump is neglected, odor and residue may become a ventilation complaint that the collector alone cannot solve.
A useful CNC machine mist extraction brief should include coolant type, concentration range, pressure, machining cycle, sump maintenance routine, and whether the stream includes smoke, fine metal dust, or sticky residue. Without that information, the collector recommendation is mostly a guess.
Do Not Combine Mist and Dry Dust Casually
CNC machining areas often sit near grinding, polishing, welding, laser marking, or powder handling. Oily mist and dry particulate do not behave the same way. Mist can wet filters and ductwork. Dry dust can blind mist elements or create different housekeeping concerns. Sparks and combustible metal dust add another review layer.
For fine dry particulate, NAROO's cartridge dust collector is relevant because it is positioned around fine particle filtration, pulse-jet cleaning, duct layout, pressure loss, and air-to-cloth ratio. For wet or sticky emissions, the wetted filter page is the safer NAROO reference because it is positioned around wet scrubbing for fine and sticky particulate emissions.
If solvent vapor, oil vapor, or odor from chemical additives becomes part of the concern, a separate VOCs Control review may be needed. A mist collector should not be described as a complete gas-phase treatment system unless it is specifically designed and documented for that duty.
Airflow Should Clear the Machine, Not Fight the Process
Too little airflow lets mist escape. Too much airflow can pull chips, coolant droplets, or heat in ways the machine was not designed to handle. It may also increase noise, energy use, and filter loading. The correct extraction rate depends on enclosure volume, leakage, mist generation, door cycle, and discharge route.
Commissioning should be performed during real machining. Watch the enclosure during cutting, tool changes, chip conveyor operation, and door opening. Look for haze around door edges, mist escaping from cable openings, oil film on nearby surfaces, and odor during peak cycles. A static test with the machine idle is not enough.
If multiple machines connect to one system, branch balancing becomes important. A machine with low resistance may steal airflow from a distant machine. A dirty filter can reduce airflow across the whole network. Pressure readings should be paired with visible checks at each machine.
Indoor Return Needs Monitoring and Discipline
Some CNC mist systems return filtered air to the building to conserve conditioned air. That decision should be reviewed carefully. The plant should understand contaminant type, filter stages, maintenance interval, pressure drop, failure response, and whether additional monitoring is appropriate. Returning air from a poorly maintained mist collector can spread small droplets or odor through the shop.
Outdoor discharge avoids some recirculation questions but creates makeup-air, energy, duct pressure, weather, and permitting considerations. Exhausted air must be replaced without sending a strong supply jet across machine openings. OSHA's ventilation guidance is clear that makeup air and system maintenance are part of ventilation performance.
NAROO's dust removal and air purification product range can support a broader system review when CNC mist extraction is part of a mixed plant-air problem.
Maintenance Records Make Mist Problems Visible
Mist control often fails gradually. A drain clogs. A filter loads. A door seal wears. Coolant concentration drifts. Operators open doors sooner to save time. Film appears on nearby cabinets. By the time the shop looks hazy, several small problems may have been present for weeks.

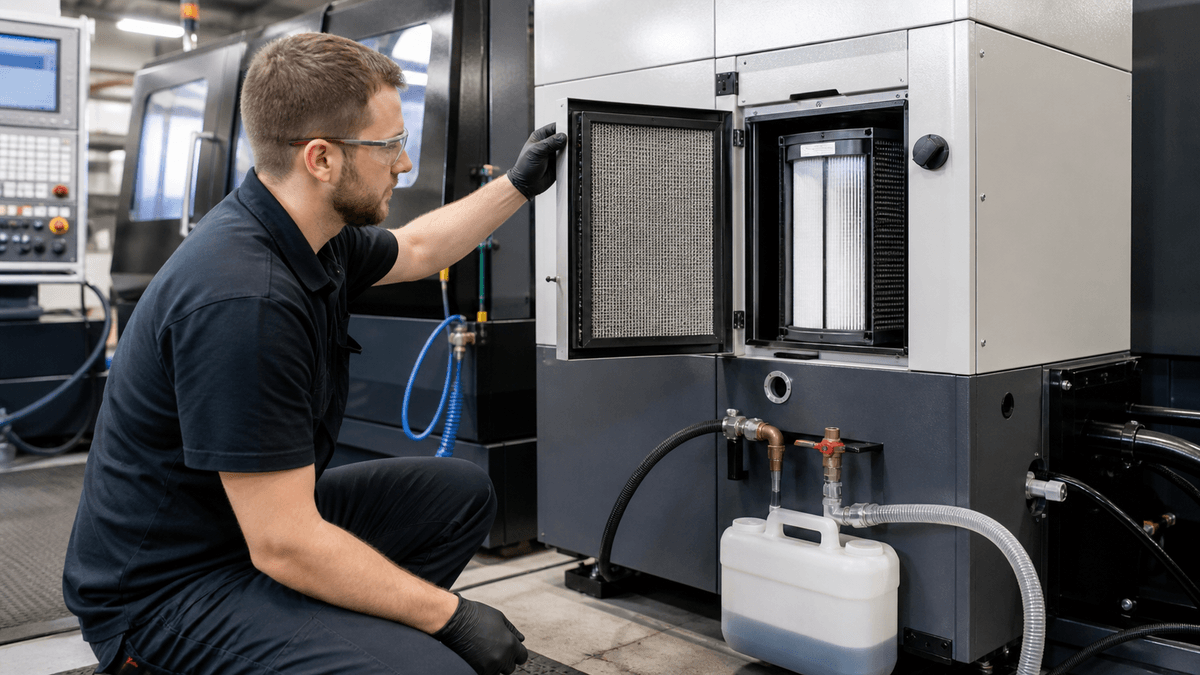

Maintenance records should include filter condition, drain condition, pressure drop, odor complaints, visible haze, coolant concentration, sump service, and any machine changes. If a problem appears only on one part family, the machining cycle may be the cause. If the whole line gets worse after a filter change, installation or airflow balance should be checked.
For supplier support, NAROO's design, production, and installation background is relevant when the project needs machine-level capture, ducting, filtration, and service access considered together.
Machine-Mounted or Centralized Extraction
CNC machine mist extraction can be handled by machine-mounted units, small cell systems, or centralized ducted systems. A machine-mounted unit can simplify retrofit work and keep the exhaust close to the source, but it may create many filters and drains across the shop. A centralized system can consolidate maintenance, but it needs branch balancing, drainage planning, and a clear simultaneous-use assumption.
The right layout depends on machine count, floor space, ceiling structure, service access, coolant type, and whether production will expand. A line of identical CNC machines may suit a central system. A small number of isolated machines may be easier to serve individually. A mixed shop with grinding, welding, and laser processes should avoid combining streams until the contaminants are clearly defined.
Central systems also need a plan for downtime. If one collector serves many machines, filter service or fan failure can affect a large part of production. Machine-mounted systems localize that risk but increase the number of assets to inspect. Procurement should compare uptime, maintenance labor, filter inventory, and future expansion, not only equipment price.
Floor Film Is a Performance Warning
Oil or coolant film on floors, windows, machine cabinets, or lighting is more than a housekeeping complaint. It often means mist is escaping before it is captured or that recovered liquid is leaking from the extraction path. Slippery surfaces can create safety concerns, and oily residue can collect dust from other processes.
When film appears, inspect the nearest machines first. Check door seals, drain lines, duct joints, collector access panels, and filter condition. Also review whether coolant pressure or machining speed changed before the residue appeared. The best correction may be enclosure repair, better door dwell, drain maintenance, or a coolant-management change rather than a larger fan.
Supplier Brief for CNC Mist Projects
- Machine type, enclosure photos, door timing, and operating schedule.
- Coolant or oil type, concentration range, pressure, and sump condition.
- Peak mist events, odor complaints, and visible haze locations.
- Current collector, filter stage, pressure drop, and drain maintenance history.
- Nearby dry dust, welding fume, grinding dust, or laser smoke sources.
- Preferred discharge route and available space for maintenance access.
Operator Feedback Belongs in the Record
Operators often notice mist problems before gauges do. They see haze when doors open, smell coolant changes, feel slippery residue, and know which part families create the worst release. Their observations should be recorded with maintenance data rather than treated as informal complaints.
When the same machine creates repeated comments, check enclosure condition, coolant behavior, door timing, and extraction airflow during that exact cycle. This kind of field evidence helps the plant correct the source instead of oversizing equipment.
Conclusion
CNC machine mist extraction works when the enclosure, coolant behavior, door cycle, airflow, drainage, and maintenance routine are treated as one system. The collector is important, but the machine creates the mist and releases it through real openings at real times. Control those release points first, then match extraction and filtration to the process.
