Automotive manufacturing dust extraction is not one central fan serving a generic factory cloud. A body shop releases welding fume. Grinding creates fast-moving particulate. Laser cutting produces a concentrated plume. Finishing operations may generate sanding dust or overspray. Material handling and battery-related processes can release fine powders with different properties again.
The collection system works when each source receives a capture method suited to its motion, contaminant, production cycle, and operator interaction. The plant may share some central infrastructure, but it should not force every source into the same hood or filter decision.
Source One: Welding Cells
Welding fume is generated close to the arc and rises with hot gases. Capture should be as close as practical without interfering with the weld, shielding gas, robot path, fixtures, or quality checks. Robotic cells may use integrated enclosures or canopy-style extraction when the plume behavior and cell geometry support it. Manual work may need movable hoods or extraction integrated closer to the tool.
OSHA guidance states that local exhaust hoods should be positioned as close as practical and arranged to remove fumes and smoke at the source. General ventilation may support background control, but it should not be expected to replace effective source capture for concentrated emissions.
Production changes matter. A new weld schedule, coated material, fixture arrangement, or open cell door can change plume behavior. Verify capture with representative parts and robot sequences.
Source Two: Grinding and Finishing
Grinding dust has directional momentum. A hood placed behind the wheel's throw can receive particles more effectively than a remote overhead pickup. Tool-mounted shrouds, backdraft benches, downdraft tables, or enclosed robotic cells may be used depending on part size and movement.
Capture should not pull dust through the operator's breathing zone. It should also allow the part to be repositioned without opening a large uncontrolled face. For robotic finishing, access doors and maintenance positions must be included in the airflow design.
Abrasive particles can wear ducts and collector inlets. Fine metal dust may present combustible-dust considerations depending on composition and form. Material characterization and a qualified safety review belong ahead of equipment selection.

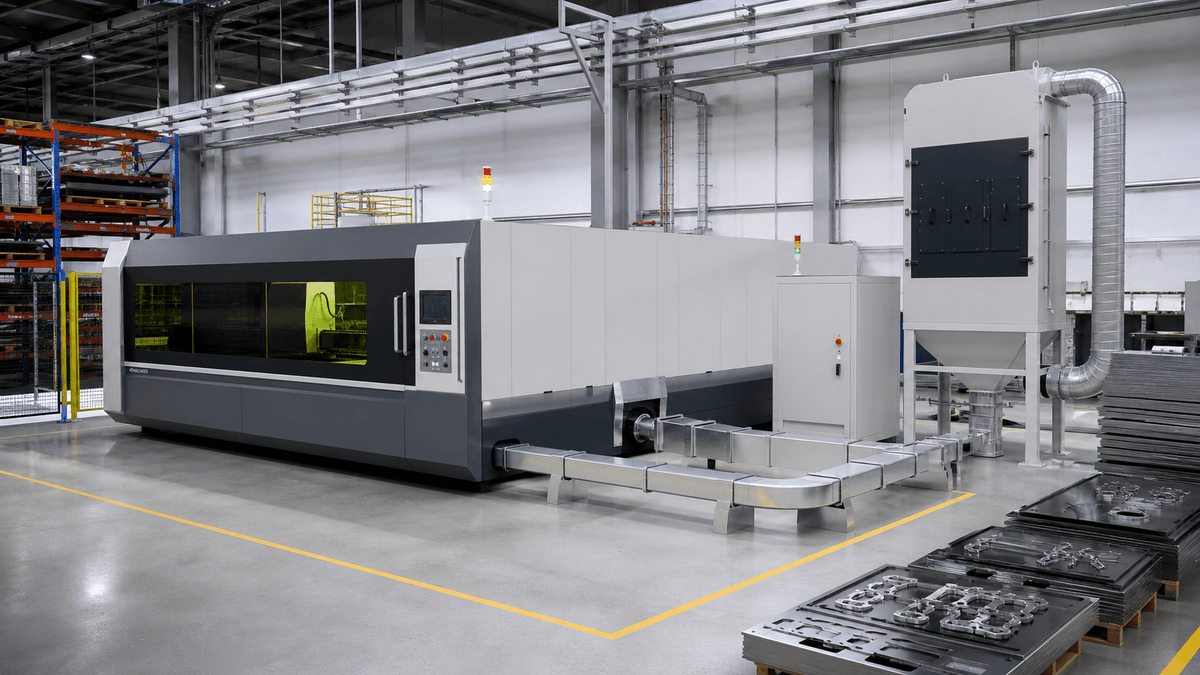

Source Three: Laser Cutting
Laser cutting produces fume and fine particulate below the workpiece. Effective extraction draws contaminants through the cutting bed or segmented zones near the active cutting area. Open covers, damaged seals, full slag drawers, or poor zone control can reduce capture even when the fan is running.
NAROO has a dedicated laser processing application. Fine dry particulate from suitable processes may pair with a cartridge dust collector, but material type, coating, cutting gas, spark behavior, loading, and safety findings must guide the complete system.
Do not size the extractor from machine table dimensions alone. Consider simultaneous cutting zones, cut program, material thickness, duty cycle, duct losses, and filter loading.
Source Four: Paint Preparation and Finishing
Sanding body panels and components creates dust that may be captured with tool extraction, ventilated workstations, or booths. Paint spraying is a different contaminant problem involving overspray and potentially vapors. Dry dust collection should not be assumed suitable for paint-laden or solvent-containing exhaust.
Separate the tasks by contaminant. Sanding dust requires particle capture. Spray operations require a booth and treatment approach designed for coating materials, airflow, fire safety, worker protection, and applicable environmental rules. Mixing streams without review can foul filters or create incompatible conditions.
Where particulate is sticky, engineers may evaluate wet collection. NAROO positions its wetted filter for fine and sticky particulate emissions, while paint-booth design needs its own coating-specific assessment.
Source Five: Material and Battery Powder Handling
Modern automotive plants increasingly interact with battery modules, electrode materials, thermal-interface products, insulation, and other fine materials. Powder charging, dispensing, trimming, and cleanup can create releases different from metalworking dust.
NAROO's lithium battery application provides relevant context for battery-manufacturing dust control. Enclosed transfer, short drop distance, close local exhaust, sealed discharge, and material-specific hazard review are usually more important than simply adding room airflow.
Keep unlike materials separated where cross-contamination, reaction, recovery, or safety concerns exist. A shared automotive extraction system should not become an uncontrolled mixing point.
Central or Cell-Level? Let Operations Decide
A central system can consolidate fans, filtration, discharge, and outdoor equipment. It may serve stable groups of compatible sources efficiently. However, long ducts, changing branch demand, production expansion, and shutdown dependencies can complicate operation.
Cell-level collectors shorten duct runs and can allow independent operation or maintenance. They occupy production space and multiply service points. The decision should consider source compatibility, simultaneous use, layout, maintenance staffing, noise, discharge, expansion, and consequences of a single failure.
A hybrid arrangement is common: central collection for a family of stable sources and dedicated units for isolated, intermittent, or incompatible processes. NAROO's automotive application positioning emphasizes tailored air filtration and dust removal, which is the right principle for mixed production areas.
Match the Collector to Loading, Not the Department Name
Fine dry dust may fit cartridge filtration. Heavy process loading may suit a bag dust collector. Coarse particles from some operations may be removed upstream with a cyclone pre-separator to reduce load on final filtration.
Collector selection must also consider temperature, moisture, abrasiveness, oil, coatings, sparks, particle size, duty cycle, discharge behavior, and combustibility. Two operations in the same department may need different equipment because the contaminants behave differently.
Ask what reaches the filter during the most demanding part of production, not only what appears in a clean sample taken from the floor.
Makeup Air Can Help or Defeat Capture
Every extracted volume must be replaced. Poorly placed supply air can push fume out of a welding cell, carry grinding dust across an aisle, or disturb a booth face. Insufficient makeup air can create door problems, negative pressure, and unstable exhaust performance.
Coordinate process exhaust with building ventilation. Supply air should move from cleaner areas toward controlled sources at velocities that support, rather than overwhelm, local capture. Seasonal operating modes and closed winter doors should be considered during commissioning.
Maintenance Access Is Part of Uptime
Automotive production values predictable cycle time. A filter system that is difficult to inspect can become a hidden bottleneck. Provide safe access to filters, pulse components, hoppers, sensors, ducts, and isolation points. Plan collected-dust container changes around production and containment needs.
Track pressure differential, branch airflow or indicators, fan status, cleaning performance, discharge level, and alarms as appropriate. EPA guidance for fabric filters identifies several of these variables as useful performance indicators. Trend data can reveal gradual loading or airflow changes before visible dust affects the cell.
Standardize operator checks but keep them source-specific. A laser table seal, welding hood position, and sander shroud require different observations.
Plan for Rework, Repair, and Temporary Stations
Production cells are not the only sources. Rework bays, maintenance benches, prototype areas, and quality-correction stations may perform intermittent welding, grinding, or sanding outside the main extraction network. Because these tasks move, they are easy to miss during the original plant survey.
Define approved locations and suitable capture methods for temporary work. Portable extraction may support some tasks when the hood can be positioned close to the source and the collected contaminant is compatible with the equipment. It should have an inspection, filter-service, and discharge plan like any fixed system. Unplanned work should not be routed into a nearby collector until material, spark, loading, and airflow compatibility have been reviewed.
Commission the Hardest Part, Not the Easiest Shift
Test extraction during the highest fume weld sequence, aggressive grinding cycle, representative laser program, sanding of a full-size part, and maximum powder-transfer rate. Include startup, door opening, container change, and cleanup. Capture that works only with an empty cell is not commissioned.
Record acceptable hood positions, door states, active zones, airflow, pressure, fan speed, filter condition, and production assumptions. Revisit the baseline when tooling, parts, materials, robot paths, or cycle times change.
Involve operators and maintenance staff. They can identify access conflicts, temporary tasks, and routine changes that drawings miss.
Five Questions for the Plant Walk
- Where does each contaminant first become airborne?
- What direction and momentum does it have at that moment?
- Can the source be enclosed or the hood moved closer?
- Are any proposed shared streams incompatible?
- How will operators know capture is working during every shift?
Turn the RFQ Into a Source Map
Provide process names, contaminants, materials, production cycles, simultaneous sources, source drawings, hood constraints, temperature, humidity, current observations, hazard information, utilities, layout, discharge preferences, and expansion plans. Mark every pickup point on the floor plan.
Ask the supplier to explain capture logic for each source, duct balance, filter selection, cleaning, discharge, controls, monitoring, safety interfaces, and commissioning. NAROO's company profile describes capabilities from research and design through production and installation, supporting the coordination needed across equipment and plant teams.
FAQ
Can welding fume and grinding dust share a collector?
Possibly, when contaminant compatibility, spark and combustible-dust risks, loading, filtration, duct isolation, and simultaneous airflow are properly assessed. Nearby sources are not automatically compatible.
Is general factory ventilation enough?
General ventilation can manage background air but is usually less efficient than source capture for concentrated fume or dust. Local exhaust should control the contaminant before it spreads.
Which collector is best for an automotive plant?
There is no single department-wide answer. Choose equipment from the source contaminant, loading, temperature, moisture, duty cycle, safety findings, and maintenance requirements.
When should extraction be rebalanced?
Recheck after branches, machines, hoods, dampers, production rates, or operating modes change, and according to the preventive maintenance plan.
One Plant Needs More Than One Capture Idea
Automotive manufacturing dust extraction becomes manageable when the plant stops treating every airborne contaminant as the same problem. Capture welding fume where it rises, receive grinding dust where it travels, pull laser particulate through the cutting zone, separate finishing exhaust by contaminant, and contain powder transfer at its openings. Then connect only compatible sources to equipment selected for their real behavior.
