A fume hood is not just a box connected to a fan. It is the point where contaminated air must enter the ventilation system instead of moving into the worker's breathing zone or the surrounding room. The hood opening, enclosure depth, side baffles, sash position, work distance, cross-drafts, and exhaust path all decide whether the fume hood performs as intended.
Industrial buyers often use the term broadly. Some mean a laboratory chemical hood. Others mean a welding hood, side-draft hood, downdraft table, canopy hood, machine enclosure, or local exhaust pickup over a process tank. The vocabulary varies, but the core question is the same: can the hood capture or contain the release before it spreads?
The Opening Is the Control Boundary

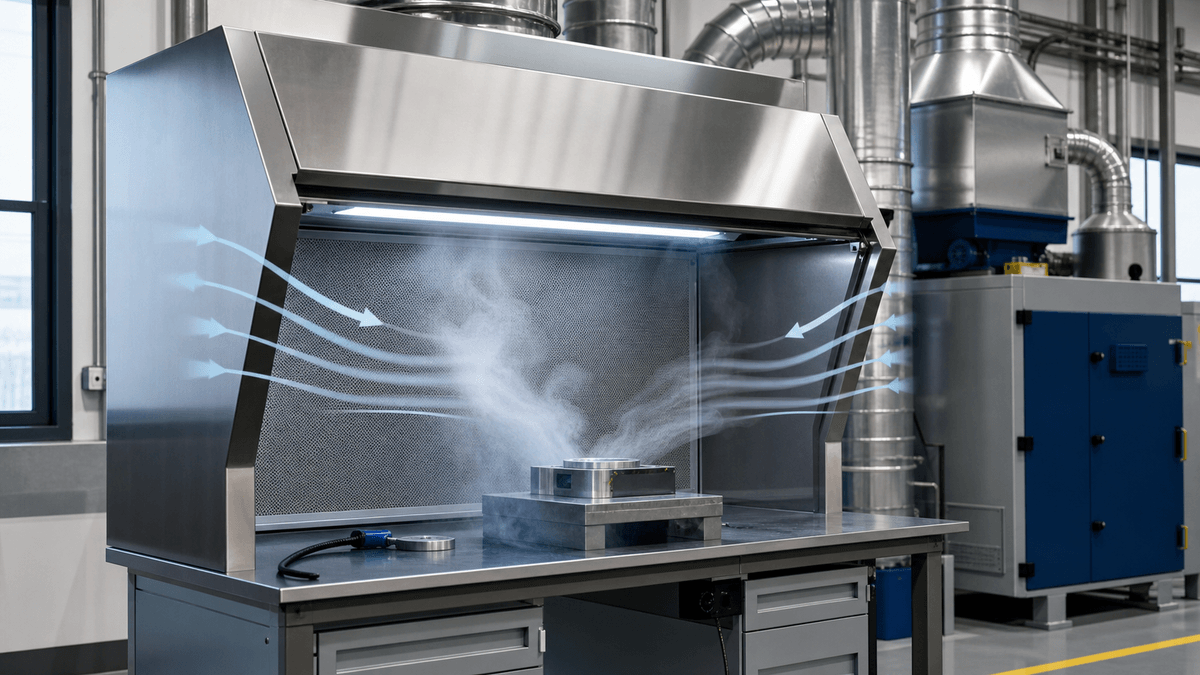

The face of a fume hood is a boundary between process air and room air. If that boundary is stable, air moves inward and carries contaminants toward ductwork or treatment equipment. If the boundary is disturbed, contaminants can escape even while the fan is running. A hand movement, fast sash movement, nearby door, supply-air jet, forklift route, or worker leaning into the hood can change the flow pattern.
OSHA's ventilation guidance describes local exhaust systems as source-oriented systems made of hoods, ducts, air cleaners, fans, and stacks. It also warns that hoods must be close to the source and that air should not pull contaminants through the worker's breathing zone. Those points are practical, not theoretical. A fume hood that looks powerful from the outside can still fail if the contaminant crosses the worker first.
For NAROO projects, this means the hood should be discussed together with the collector and duct system. The industrial dust removal and air purification products are most useful when the source capture point has been defined clearly.
Laboratory Hoods and Industrial Hoods Have Different Priorities
A laboratory chemical fume hood is usually designed to contain small-scale chemical emissions inside a bench-style enclosure and exhaust them safely. An industrial fume hood may capture welding fume, grinding dust, mist, hot vapor, smoke, powder release, or process fumes from a larger source. The industrial version may need heavier ductwork, sparks review, dust filtration, corrosion review, wet collection, gas treatment, or makeup-air planning.
Do not use laboratory rules as a shortcut for industrial process design. A sash height concept may be useful in a lab hood, but a welding plume, tank vapor, CNC mist release, or powder charging point has its own flow behavior. The hood shape should follow the source, not a generic name.
If the stream is particulate-heavy, NAROO's cartridge dust collector can be relevant for fine dry particles and fume. If heavy dust is present, the bag dust collector category may be a better fit. If sticky particulate or wet emissions dominate, wetted filter review may be needed.
Hood Distance Changes Capture Faster Than People Expect
One of the most common local exhaust mistakes is placing the hood too far from the emission point. A fan can blow air across a room, but suction at a hood drops quickly with distance. The worker may hear airflow and assume the system is strong, while the contaminant plume escapes around the edge of the hood.
Move the hood closer before increasing fan size. Add side baffles, curtains, partial enclosure, or a receiving hood if the process naturally throws contaminants in one direction. Reduce cross-drafts from supply air, doors, cooling fans, or traffic. If workers must move the hood away to do the job, the design is fighting the task and will likely fail in daily use.
For welding, cutting, and laser work, NAROO's laser processing application context helps frame fine fume capture close to the source. For automotive manufacturing, the automotive air filtration and dust removal page is relevant where local hoods serve fabrication and finishing processes.
Filtration and VOCs Control Are Different Questions
A fume hood may carry particles, mist, vapor, gas, smoke, or a mixture. The treatment method should match the contaminant. Dry dust collectors capture particulate; they do not automatically remove solvent vapor or odor. A plant that handles coatings, degreasing, adhesive curing, or chemical evaporation may need a separate VOCs Control conversation, possibly involving gas-phase treatment, adsorption, thermal treatment, or other technologies beyond particulate filtration.
This distinction matters for credibility. If the fume hood captures welding fume, laser particulate, or dry powder, an industrial cartridge dust collector may be part of the system. If the fume hood captures solvent vapor, the project should not be described as solved by a cartridge filter unless the system is specifically designed and documented for that contaminant.
NAROO's other products and broader clean-air positioning can support a system discussion, but the article should keep gas, mist, and dust treatment responsibilities clear.
Face Velocity Is Useful Only With Context
Face velocity is often measured at a fume hood opening, especially for laboratory hoods. It is useful, but it is not the full truth. A hood can show an acceptable average while having weak zones near the corners, turbulence at the sash, or escape caused by cross-drafts. A high velocity can also create turbulence or interfere with the process.

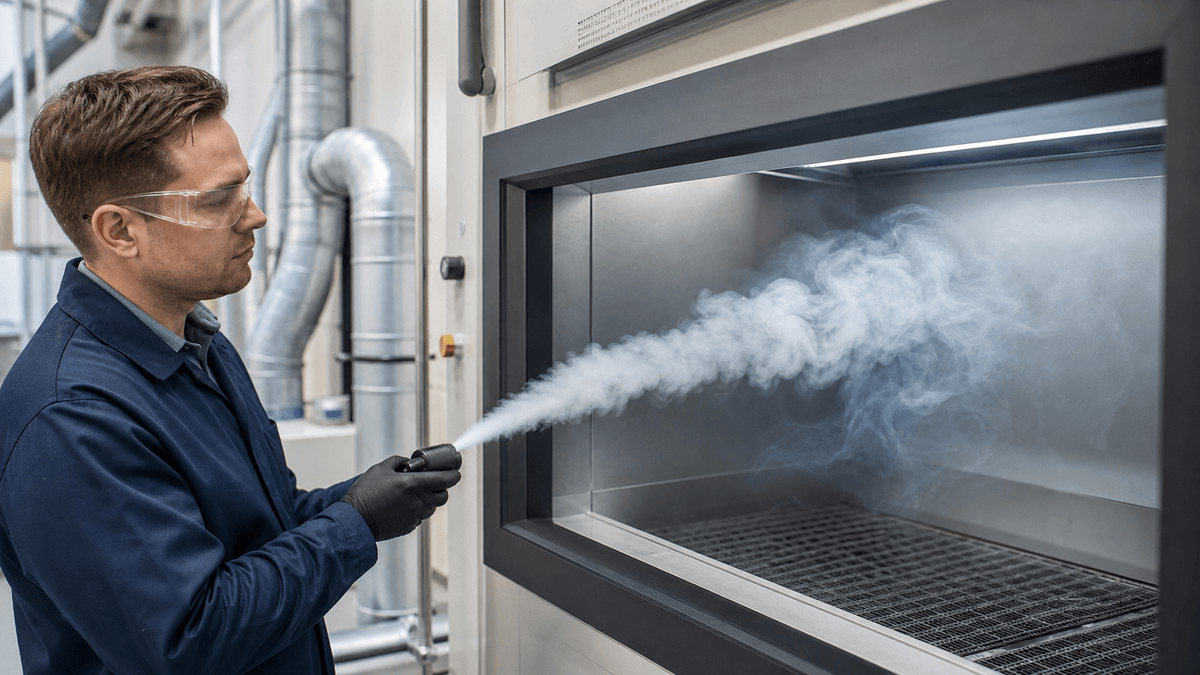

Smoke visualization, tracer observation, airflow measurement, static pressure checks, and real-use observation should be combined. The worker's position matters. If the worker leans into the hood or places the source near the opening, contaminants may escape or pass through the breathing zone. If large objects block slots or baffles, airflow distribution changes.
Commissioning should be repeated after layout changes, equipment relocation, production changes, or duct modifications. A fume hood is not permanently verified just because it passed one test years ago.
Discharge and Makeup Air Shape the Hood
The air entering a fume hood must come from somewhere. If makeup air arrives as a strong jet across the hood face, it can push contaminants out. If the room is starved for replacement air, doors may pull hard, other exhaust systems may lose balance, and hood performance may fluctuate. Ventilation design should consider the whole room, not only the hood opening.
Discharge direction also needs early review. Exhausting outdoors may require attention to stack location, re-entry, weather, fan pressure, and environmental requirements. Recirculating filtered air indoors may conserve energy in some applications, but it needs careful review of contaminant type, filter performance, monitoring, and failure response.
NAROO's design-through-installation background is relevant when hood performance, duct layout, collector selection, fan sizing, and commissioning need to be connected.
Everyday Habits That Undermine a Fume Hood
- Storing parts or containers where they block airflow paths.
- Working with the source too close to the hood opening.
- Opening doors, panels, or sashes more than the process requires.
- Using pedestal fans near a hood face.
- Moving adjustable hoods away from the source for convenience.
- Ignoring smoke checks after equipment layout changes.
- Assuming odor removal proves particulate control, or the reverse.
Training Should Match the Hood Design
People use ventilation equipment differently when they understand what the opening is doing. Operators should know where to place the source, which panels or sashes should remain closed, why fans should not be aimed across the face, and what visible escape looks like. Maintenance teams should know which pressure readings, airflow checks, filter conditions, and duct problems deserve attention.
Training should be practical and task-specific. A short demonstration with smoke can show why a container placed at the edge escapes more easily than one set deeper inside. A photo of poor setup can help supervisors correct habits before they become normal. The goal is not to add paperwork; it is to keep the capture boundary understandable during daily work.
Recheck Performance After Changes
Hood performance should be reviewed after equipment relocation, new materials, fan service, duct additions, filter changes, production-rate increases, or building ventilation changes. A supply diffuser moved during a renovation can disturb capture. A new machine enclosure can change the amount of air required. A filter change can alter pressure loss and fan operating point.
Record the condition during each check: opening size, process state, worker position, airflow reading, visible smoke behavior, pressure drop, and any complaints. These records give the plant a baseline for troubleshooting. Without them, each problem starts from memory, and memory is a poor commissioning tool.
Supplier Brief for a Fume Hood Project
Before requesting equipment, send the supplier the contaminant type, process photos, release temperature, opening size, worker position, part movement, duty cycle, current airflow data, room supply-air locations, discharge preference, and any sampling or odor complaints. If the project involves chemicals, include safety data sheets and identify whether particulate control, mist control, or VOCs Control is required.
For manufacturing tasks, include whether the fume hood will serve welding, laser cutting, grinding, tank work, powder handling, coating, or machine mist. This keeps the recommendation tied to the process. A hood that works for a bench chemical task may not work for a hot plume, and a dust collector that works for fine particulate may not treat vapor.
Conclusion
A fume hood works when the opening, airflow pattern, worker position, and contaminant behavior are understood together. Treat the hood as the first control boundary, not as an empty box before the duct. Then select filtration, discharge, and monitoring that match the actual stream. That is how a fume hood becomes a dependable part of an industrial clean-air system.
